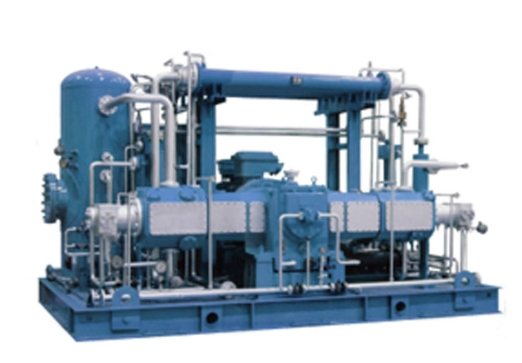

china CNG Compressor

The CNG compressor boasts a multi-stage compression system that maximizes efficiency while minimizing energy waste. With superior heat dissipation and vibration control, it delivers smooth and quiet operation. The compressor’s modular design allows for easy maintenance and quick part replacement,


Working principle

● According to the American Petroleum Institute API618 & API11P standard design for the whole skid-mounted type, easy to install and maintain.

● The compressor is symmetrically balanced for smooth operation and low vibration, and the cylinder adopts oil-free lubrication design, which is pollution-free to the compressed medium.

● Large capacity and wide range of suction pressure.

● Low rotational speed, long service life of wearing parts and low noise.

● Soft start, allowing the compressor to start and stop frequently.

● Wide range of air intake, wide range of adaptability

● Neat skid mounted structure, low noise, easy to install in urban areas, saving investment.

● Siemens PLC control system, high degree of automation, convenient remote control.

● Three kinds of cooling methods: sub-cooling, mixed cooling and water-cooling can be selected.



Main Specifications

Structural typeVertical (Z)
Suction pressure0.1~3.2MPa
Discharge pressure25MPa
Flow range700~2940NM3/h
Motor power160~315kw
Cooling MethodAir or Water Cooling
ApplicationNatural gas is imported by pipeline, pressurized in the station, directly or stored in a fixed gas storage cylinder group (well),which is a filling station for CNG vehicles to fill with compressed natural gas.



Technical parameters and specifications

S/Nmodelinlet pressure
(MPa
outlet pressure
(MPa
motor power
(Kw)
Flow(Nm³/h)
1 ZW-6.3/1-2500.1 25 160 700
2 ZW-6.1/2-2500.2 25 220 1050
3 ZW-7.7/2-2500.2 25 280 1340
4 ZW-8.7/2-2500.2 25 315 1510
5 ZW-5.05/2.5-2500.25 25 200 1000
6 ZW-7.1/2.5-2500.25 25 280 1400
7 ZW-5.0/3-2300.3 25 220 1130
8 ZW-5.45/3-2500.3 25 250 1280
9 ZW-6.3/3-2500.3 25 280 1440
10 ZW-7.1/3-2500.3 25 315 1620
11 ZW-5.88/3.5-2500.35 25 280 1480
12 ZW-4.1/4-2500.4 25 220 1180
13 ZW-4.75/4-2500.4 25 250 1350
14 ZW-5.4/4-2500.4 25 280 1500
15 ZW-3.2/6-2500.6 25 220 1300
16 ZW-2.8/8-2500.8 25 220 1430
17 ZW-3.2/8-2500.8 25 250 1590
18 ZW-2.7/10-2501.0 25 250 1700
19 ZW-3.0/10-2501.0 25 280 1900
20 ZW-2.6/13-2501.3 25 280 2050
21 ZW-2.68/14-2501.4 25 280 2100
22 ZW-2.57/16-2501.6 25 315 2490
23 ZW-2.1/20-2502.0 25 280 2400
24 ZW-1.57/25-2502.5 25 250 2350
25 ZW-1.78/25-2502.5 25 280 2620
26 ZW-1.56/32-2503.2 25 280 2940

The CNG compressor boasts a multi-stage compression system that maximizes efficiency while minimizing energy waste. With superior heat dissipation and vibration control, it delivers smooth and quiet operation. The compressor’s modular design allows for easy maintenance and quick part replacement, reducing downtime and operational costs.

Safety features are integral to our CNG compressor, including real-time monitoring systems, emergency stop functions, and corrosion-resistant materials. It meets global industry standards, ensuring compliance with stringent safety and environmental regulations. Whether for continuous or intermittent use, this CNG compressor provides reliable performance without compromising safety.

Ideal for businesses seeking a powerful and durable solution, our CNG compressor offers unmatched efficiency and longevity. Its ability to handle high-pressure applications makes it a preferred choice for industrial and commercial gas compression. Choose our CNG compressor for a dependable and cost-effective natural gas compression solution.
