CNG gas station complete equipment

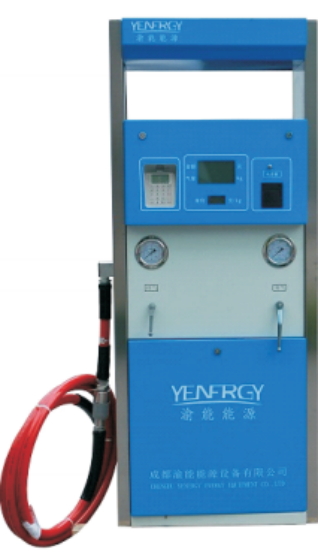

6.1 CNG dispenser

Summary

The general type intelligent CNG dispenser uses our company’s independent development high-performance military rank microprocessor control system, which is mainly used to meter CNG filling for CNG vehicle. The industry leading pressure intelligence computing function ensures one-time fully filling and preventing overfill. Scientific CNG filling speed control ensures the reliable control of CNG filling target pressure.
Our  independent  R&D  microcomputer  controller  uses  military  rank  electronic  parts,  and  passes  the  harsh  environmental suitability, electromagnetic compatibility and safety performance test, which ensures the reliability of microcomputer controller while the CNG dispenser runs under the complex operating environment. We own the proprietary intellectual property rights, there is no obstacle for technology upgrading and rebuilding in future.

Advantages

Industry-leading pressure control Modular design Proprietary intellectual property rights

Key Parameters

Main Function
Highlight backlight LCD, dual display unit price, CNG volume and sum
Safety protection function for overpressure, overflowing, anti-surge
Ultra-large capacity memory function, 20,000 CNG filling transactions can be saved while off-line, and supports inquiry and print historical data

Refuel by preset volume and sum

Fault self-service diagnostic function, automatic display fault code

Pressure temperature compensation

Breaking protection
Pressure discharge and blow-off

IC card auto settlement and management

Automatic filling pressure control, which assures take  out CNG from storage system effectively

Data protection and data delay display when power failure

Display the recent CNG filling data

Monitor malfunction of mass flow meter and stop refueling while mass flow meter has malfunction
Gas leakage and gas lost protection, display alert      information
Filter online cleaning function

Manual emergency shut-down valve

Bill printer

6.2  CNG filling/unloading column

Summary
CNG  filling/unloading  column  uses  high-performance  industrial  control  microprocessing  system,  which  is  the  metering equipment used in trade settlement of CNG main station or substation, and mainly filling/unloading & metering for CNG tank car.
Temperature compensation is available as it uses imported mass flow meter with temperature sensor, high accuracy pressure sensor assures the high accuracy metering.
Mass flow meter, manual ball valve, high pressure hose, quick coupling are imported from famous brand abroad.
Designed and manufactured by ourselves, the computer controller uses industrial grade electronic components, and it passed the test of  harsh  environmental  suitability,  electromagnetic compatibility and  safety, which assures the  reliability  of  computer controller in complex operating environment. With proprietary intellectual property rights, there is no any obstacle in technology upgrading and rebuilding in future.
Runner pipe path isΦ22x4, high pressure hose diameter is 25mm, maximum flow reaches 80kg/min.

Advantages

High accuracy of measuring、High reliability、Proprietary intellectual property rights、 Fast speed for filling

Main function

Safety protection function for overpressure, overflowing
Data protection and data delay display when power failure
Bulk-storage memory function, inquiry shift total volume and total totalizer
Refuel by preset volume and sum
Display the recent CNG filling data
Fault self-service diagnostic function, automatic display fault code
Pressure temperature compensation
Breaking protection
Manual emergency shut-down valve

IC card auto settlement and management (optional)
Bill printer
Data transmission commu
nication interface

Key Parameters
